VipaTray is a cutting-edge, ready-to-tile shower tray system, meticulously engineered to deliver seamless and enduring wetroom and shower installations. Crafted with precision and built to the highest standards, VipaTray ensures exceptional quality and performance, providing a robust and reliable base for any project in wet environments.
Designed with a lightweight yet durable high-density XPS core, VipaTray features pre-machined falls that ensure optimal water flow to the drain outlet.
This ready-to-tile surface is fully waterproof, impact-resistant and ideal for creating sleek and contemporary bathroom and wetroom designs. Tailored to your needs, VipaTray can be easily trimmed to fit specific site dimensions. The range includes various tray configurations and a comprehensive selection of ancillary materials, ensuring a complete and hassle-free installation.

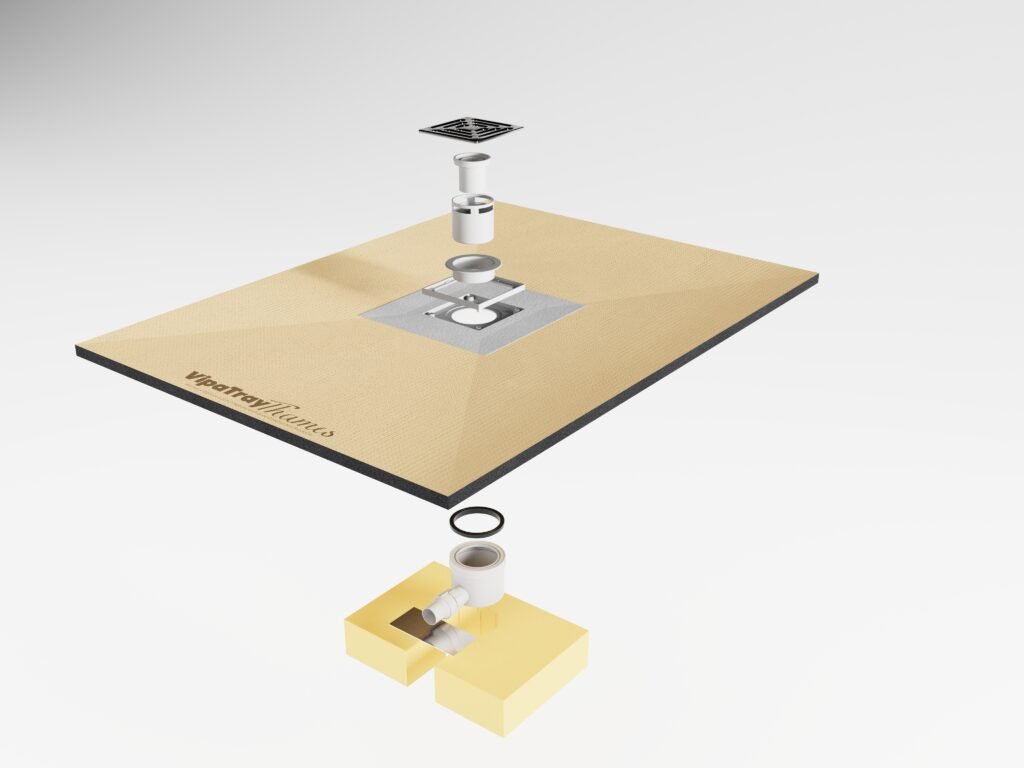

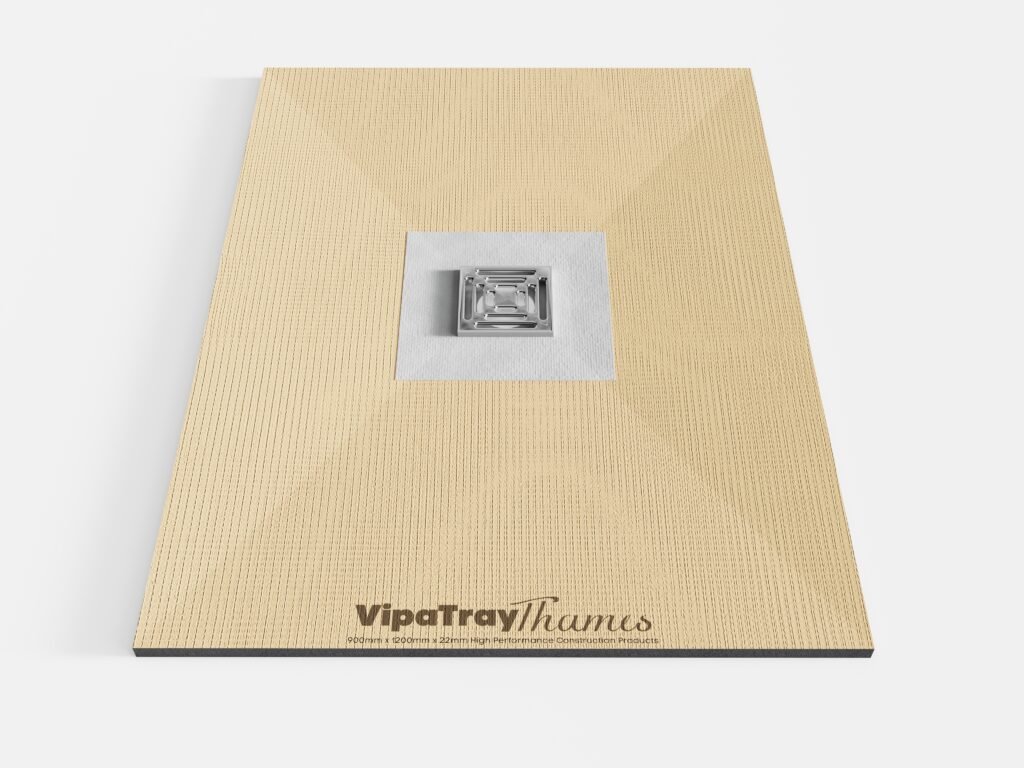

The VipaTray Thames is perfect for sleek, efficient wetroom spaces. It features an expertly designed slope for optimal drainage and is ready – to – tile and fully waterproof, ensuring quick and lasting installations. VipaTray Thames is the ideal choice for high-quality, reliable shower installations.

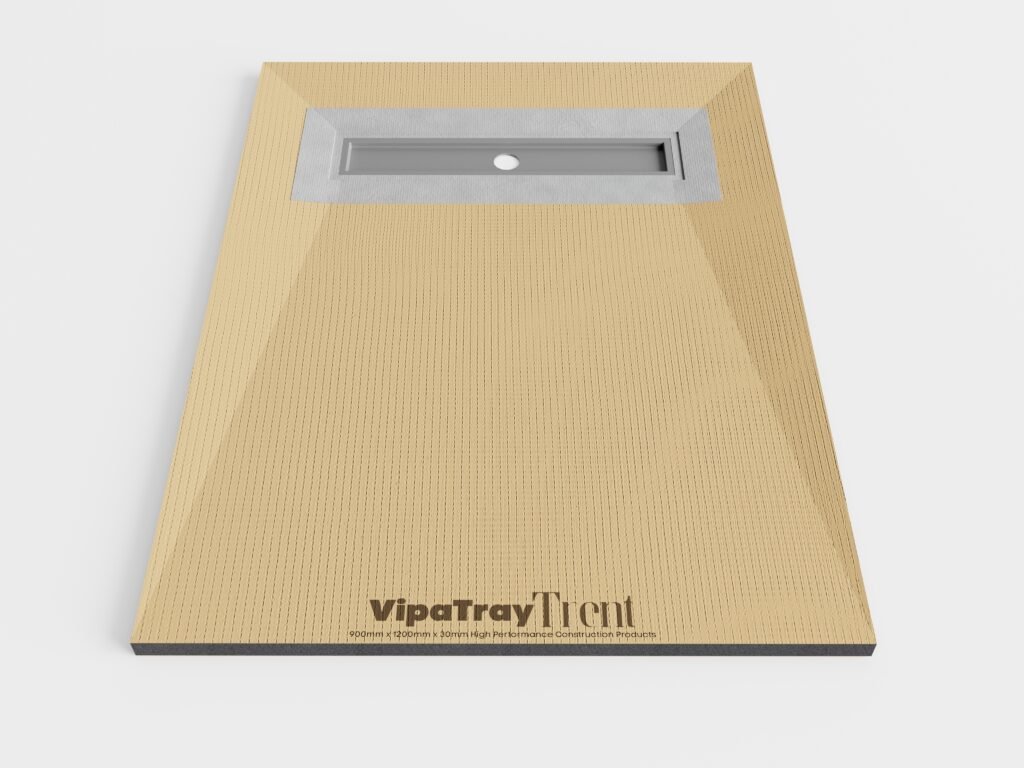

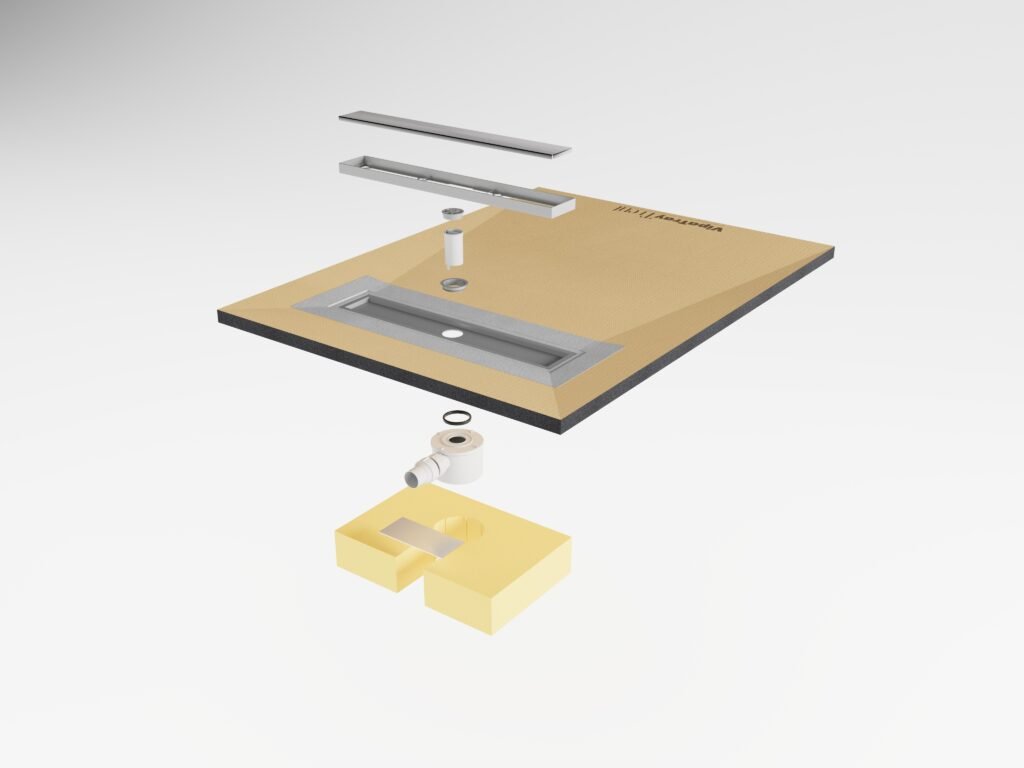

The VipaTray Trent enhances wetroom installations with its exceptional features. It includes a factory-fitted gasket for added waterproofing and a high-capacity drain that manages up to 36lpm. The VipaTray Trent also offers a side drain option, catering to diverse design needs. Lightweight and easy to cut, it simplifies installation. VipaTray Trent is versatile and ideal for creating luxurious wetrooms.
Manufactured with a patented heat transfer core that provides pipe spacing set at 150mm centres.
The special heat transfer cores are designed to extract heat from the water pipes and effectively transfer this heat across the panel surface.
Manufactured with a patented heat transfer core that provides pipe spacing set at 150mm centres.
Manufactured with a patented heat transfer core that provides pipe spacing set at 150mm centres.
VipaTray excels in performance, capable of supporting mosaic tiles as small as 20mm x 20mm, thanks to its enhanced resistance to point loading. The VipaTray Thames and VipaTray Trent ranges offer superior flow capacity and under-tile drainage, making them a perfect choice for even the most demanding wetroom projects.
Floor Load.
For the creation of ‘walk in’ level access shower environments.
Protects against moisture damage. Ideal for wet areas.
Suitable for large format tiles and mosaic tiles 20mmx20mm or greater.
Easy to handle and install without compromising strength.
A perfect solution to suit the most demanding Wetroom project.
Reduces downward heat loss and suitable for underfloor heating.
Design and manufacture bespoke items tailored to suit individual project requirements.

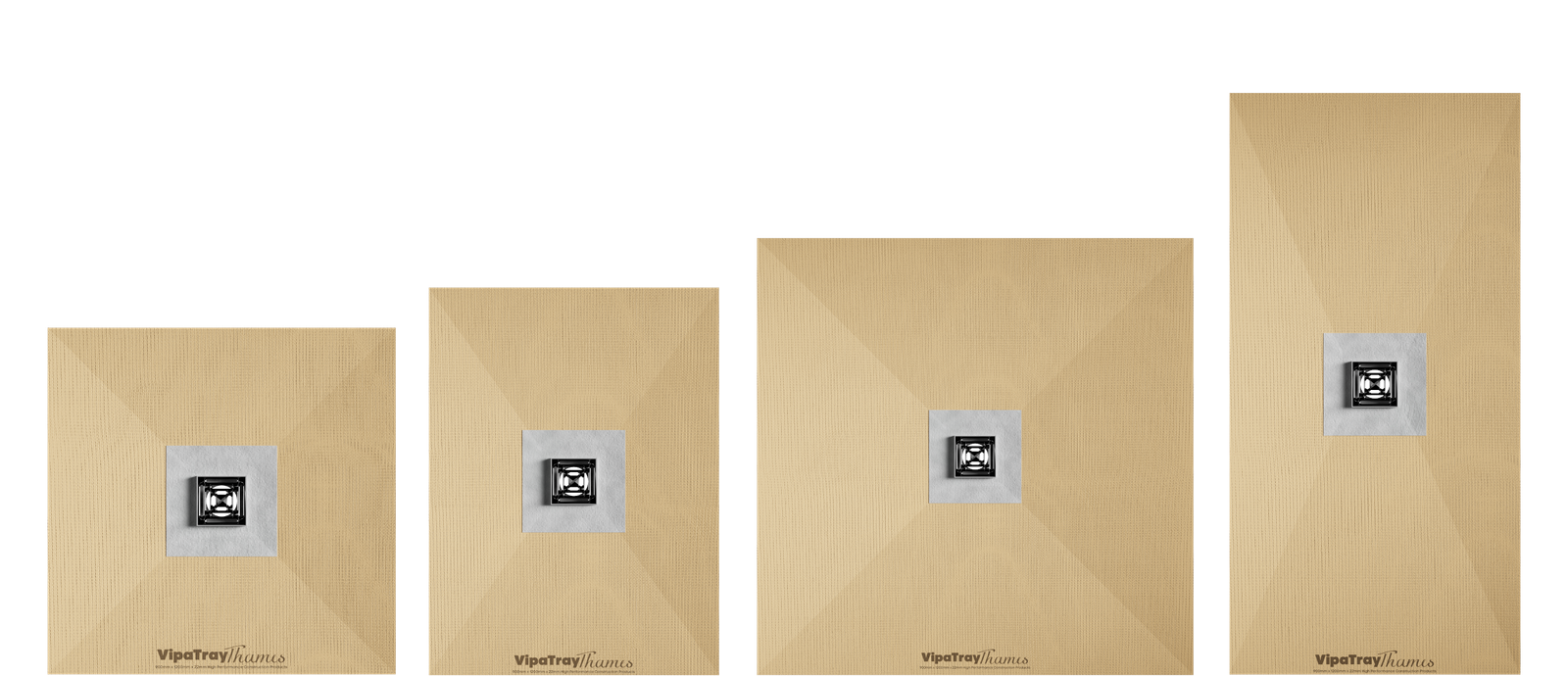

We provide VipaTray Thames & Trent in a range of sizes to suit your requirements.
| Product Code | Size | Depth | Drain Position | Fall to Drain |
|---|---|---|---|---|
| E0010 | 800mm x 800mm | 22mm | Centre | -11mm |
| E0020 | 900mm x 900mm | 22mm | Centre | -11mm |
| E0030 | 1000mm x 1000mm | 22mm | Centre | -11mm |
| E0040 | 1200mm x 1200mm | 22mm | Centre | -11mm |
| E0075 | 900mm x 1200mm | 22mm | Centre | -11mm |
| E0045 | 1500mm x 1500mm | 27mm | Centre | -16mm |
| E0102 | 900mm x 1500mm | 27mm | Centre | -16mm |
| E0115 | 900mm x 1800mm | 27mm | Centre | -16mm |
| Product Code | Size | Depth | Drain Position | Fall to Drain |
|---|---|---|---|---|
| E0060 | 1000mm x 1000mm | 22mm | Corner | -11mm |
| E0080 | 1000mm x 1200mm | 22mm | Offset | -11mm |
| E0090 | 1200mm x 1200mm | 22mm | Offset | -11mm |
| E0070 | 800mm x 1200mm | 22mm | Offset | -11mm |
| E0076 | 900mm x 1200mm | 22mm | Offset | -11mm |
| E0100 | 800mm x 1500mm | 27mm | Offset | -16mm |
| E0105 | 900mm x 1600mm | 27mm | Offset | -16mm |
| E0120 | 900mm x 1800mm | 30mm | Offset | -19mm |

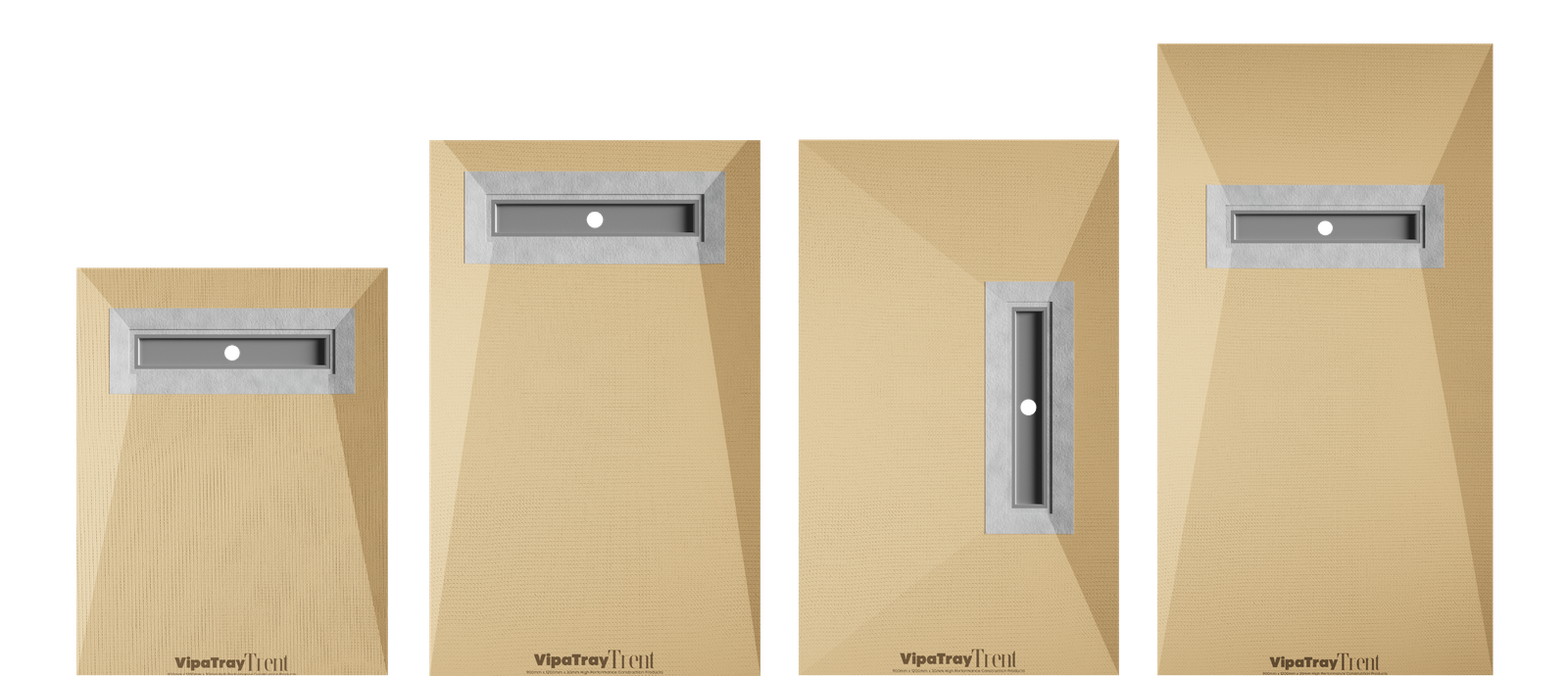

| Product Code | Size | Depth | Drain Position | Fall to Drain |
|---|---|---|---|---|
| E0510 | 900mm x 1200mm | 30mm | End | -20mm |
| E0515 | 900mm x 1500mm | 30mm | End | -20mm |
| E0520 | 900mm x 1500mm | 30mm | Side | -20mm |
| E0530 | 1000mm x 1800mm | 30mm | End | -20mm |
